# Can superposition theorem be used for dependent sources?

### Table of Contents

- Can superposition theorem be used for dependent sources?
- How do you superposition a dependent source?
- When can you not use superposition?
- What are the limitations of superposition theorem?
- Can you combine dependent and independent sources?
- Is superposition theorem valid for only linear systems?
- Does superposition theorem apply to power?
- What are the advantages and disadvantages of using superposition theorem?
- Can superposition theorem be applied to nonlinear networks?
- Is a generator a voltage source?
- What are independent and dependent sources?
- What is DC circuit theory?
- What is a dependent source?

### Can superposition theorem be used for dependent sources?

The theorem is applicable to linear networks (time varying or time invariant) consisting of independent sources, linear dependent sources, linear passive elements (resistors, inductors, capacitors) and linear transformers. Superposition **works for voltage and current but not power**.

### How do you superposition a dependent source?

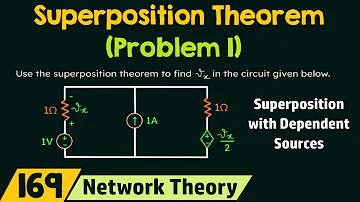

6:178:04Superposition Theorem with Dependent Sources - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we have minus 1 current i3 it is equal to V minus V X 2 by 2 divided by 1. So we have V. Minus VXMoreSo we have minus 1 current i3 it is equal to V minus V X 2 by 2 divided by 1. So we have V. Minus VX 2 divided by 2 and this is equal to 0 and we know that V is equal to minus V x2. So in place of V.

### When can you not use superposition?

Every simple circuit is blissfully unaware of the others until you do the final addition. This is a marvelous property of linear circuits, and it is one of the reasons we love linearity so much. **Circuits that are not linear (non-linear circuits)** don't have this property, and superposition cannot be applied.

### What are the limitations of superposition theorem?

**What are the limitations of superposition theorem**

- It is used to measure current and voltage but cannot be used to measure power.
- Applicable only for linear circuits.
- There must be more than one source to apply this theorem.
- This is not applicable for unbalanced bridge circuits.

### Can you combine dependent and independent sources?

Current Source Summary Ideal independent current sources can be **connected together in parallel** for circuit analysis techniques as either parallel-aiding or parallel-opposing configurations, but they can not be connected together in series. ... A dependent source is one whose value depends on some other circuit variable.

### Is superposition theorem valid for only linear systems?

The superposition theorem applies **only when all the components of the circuit are linear**, which is the case for resistors, capacitors, and inductors it is not applicable to networks containing nonlinear elements.

### Does superposition theorem apply to power?

**The superposition theorem is not applicable to power**, because it is a non-linear quantity. Therefore, the total power dissipated in a resistor must be calculated using the total current through (or the total voltage across) it.

### What are the advantages and disadvantages of using superposition theorem?

Advantages - It is applicable to the elements of the network as well as to the sources. It is very useful for circuit analysis. It is utilized to convert any circuit into its Thevenin equivalent or Norton equivalent. Disadvantages - **Superposition is applicable to current and voltage but not to power**.

### Can superposition theorem be applied to nonlinear networks?

Superposition allows the analysis of multi-source AC series-parallel circuits. **Superposition can only be applied to networks that are linear and bilateral**. ... Further, superposition cannot be used to find values for non-linear functions, such as power, directly.

### Is a generator a voltage source?

A generator in electrical circuit theory is one of two ideal elements: an **ideal voltage source**, or an ideal current source. ... Voltage generators are modelled as an ideal voltage source in series with a resistor. Current generators are modelled as an ideal current source in parallel with a resistor.

### What are independent and dependent sources?

- Independent Source: Independent
**Sources**are the**sources**,whose output value doesn't depend upon the circuit parameters like voltage and current. - Explain Independent voltage source: An independent voltage source has a voltage that is independent of other quantities in a circuit. ...
- Explain Independent Current
**sources**: An independent current source maintains a current which is unaffected by any other quantity. ...

### What is DC circuit theory?

- DC Circuit Theory The fundamental relationship between voltage, current and resistance in an electrical or electronic circuit is called
**Ohm's Law**. All materials are made up from atoms, and all atoms consist of protons, neutrons and electrons. Protons, have a positive electrical charge.

### What is a dependent source?

- In the theory of electrical networks, a dependent source is a
**voltage source**or a**current source whose value depends on a voltage or current elsewhere in the network**. Dependent sources are useful, for example, in modelling the behavior of amplifiers. A bipolar junction transistor can be modelled as a dependent current...
